Range / deck & hull fittings / Deck Bushes - Aluminium

Allen Sailing

Latest News

A8239-BLUE
PDF drawing
IGES file link

Flanged Deck Bush

A8239

£24.36

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A8239 Category:

Description

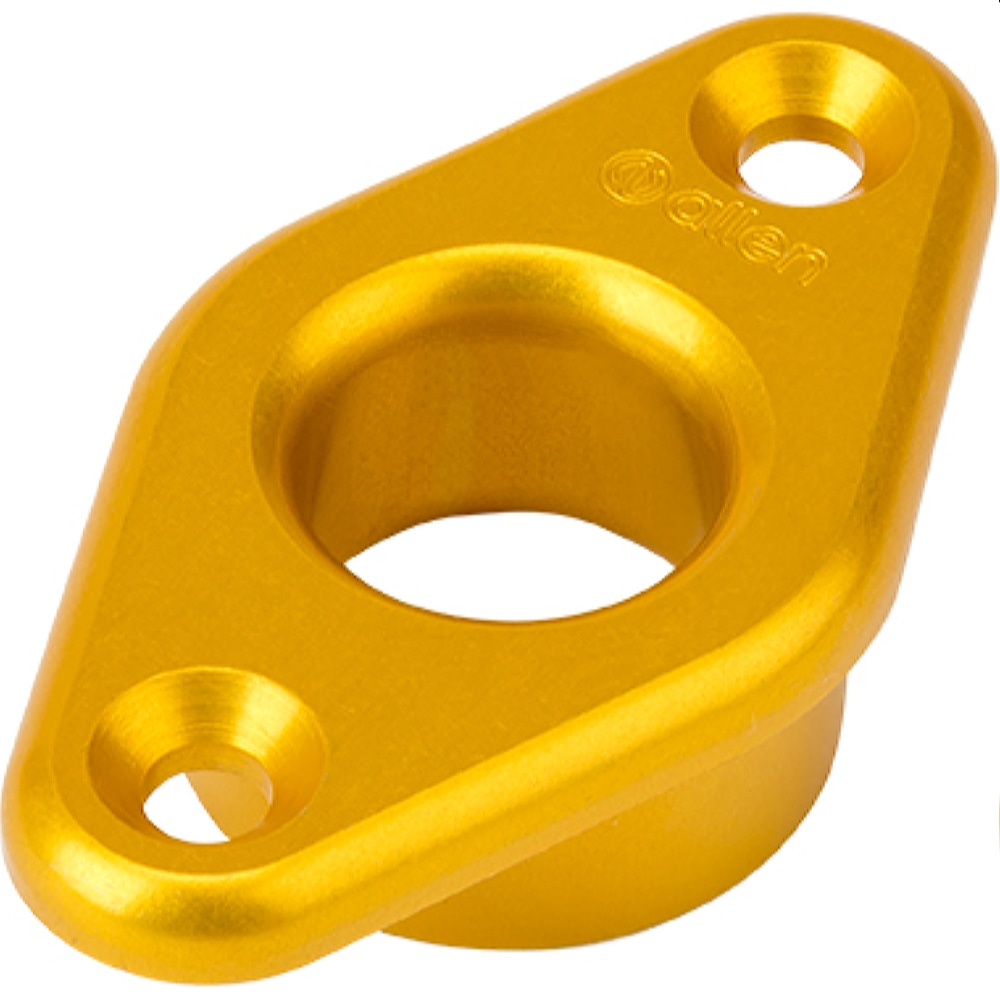

Flanged aluminium deck bush.

Also known as a through deck fairlead or bush, rope guide and thru-deck bush.

Flanged deck bushes feature a wider surface area for more protection and two fixing holes. This style of bush allows for a simple installation which only requires two screws and no messy bonding agent or silicone.

Typically used to guide a rope or wire through a surface whilst protecting both the rope and the surface from wear.

To install, simply drill a hole to match the external diameter of the bush and then push the bush into the hole. Use two screws or bolts to hold this style of bush in place.

Aluminium through deck bushes are available in a choice of 6 colours, allowing you to add a personalised touch.

Read our “all you need to know” guide to deck bushes here.

Reviews

There are no reviews yet.

Be the first to review “Flanged Deck Bush”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Flanged Deck Bush

SKUxTitlefixing hole centres mmfixing hole depth mmfixing hole diameter mminside diameter mmoutside diameter mmLength mmWeight gPrice
A.439AAluminium Through Deck Bush -8-813143£11.41
A.539AAluminium Through Deck Bush-8-121604£12.23
A8039Flanged Deck Bush299491909£21.96
A8040-34-Aluminium Rope Guide -638 x 1134 x 844 x 42010£24.50
A8040-56Aluminium Rope Guide -660 x 2056 x 1668 x 36013£37.42
A8139Flanged Deck Bush44942333016£29.28
A8239Flanged Deck Bush32941321010£24.36
A8339Flanged Deck Bush36941524012£24.36
A8439-13-Aluminium Threaded Through Deck Bush-13 Min - 18 Max-813135£22.90
A8439-17-Aluminium Threaded Through Deck Bush-17 Min - 22 Max-813176£22.90
A8439-21-Aluminium Threaded Through Deck Bush-21 Min - 26 Max-81307£23.06
A8439-25-Aluminium Threaded Through Deck Bush -25 Min - 30 Max-812257.5£23.06
A8439-29-Aluminium Threaded Through Deck Bush-29 Min - 34 Max-81308.5£23.06
A8439-35Aluminium Threaded Deck Bush-35 Min - 40 Max-81309£24.36
A8439-7-Aluminium Threaded Through Deck Bush -7 Min - 9 Max-813103.7£17.52
A8439-9-Aluminium Threaded Through Deck Bush -9 Min - 14 Max -813105£22.90
A8539-13-Aluminium Threaded Through Deck Bush -13 Min - 18 Max-1216157£24.44
A8539-17-Aluminium Threaded Through Deck Bush -17 Min - 22 Max-1216178£24.44
A8539-21-Aluminium Threaded Through Deck Bush-21 Min - 26 Max-121608.5£24.58
A8539-25-Aluminium Threaded Through Deck Bush -25 Min - 30 Max-1216259.5£24.58
A8539-29-Aluminium Threaded Through Deck Bush -29 Min - 34 Max-12162910.5£24.58
A8539-35Aluminium Threaded Deck Bush-35 Min - 40 Max-1216011£25.88
A8539-7-Aluminium Threaded Through Deck Bush -6 Min - 9 Max-121606£24.44
A8539-9-Aluminium Threaded Through Deck Bush -9 Min - 14 Max -1216296£24.44
