A2038

£52.44

Back To Back

View more details

27 in stock (can be backordered)

By adding this item to my basket I agree I have read and understood the terms and conditions of sale.
Stockists

Returns and refunds

SKU: A2038 Category:

Description

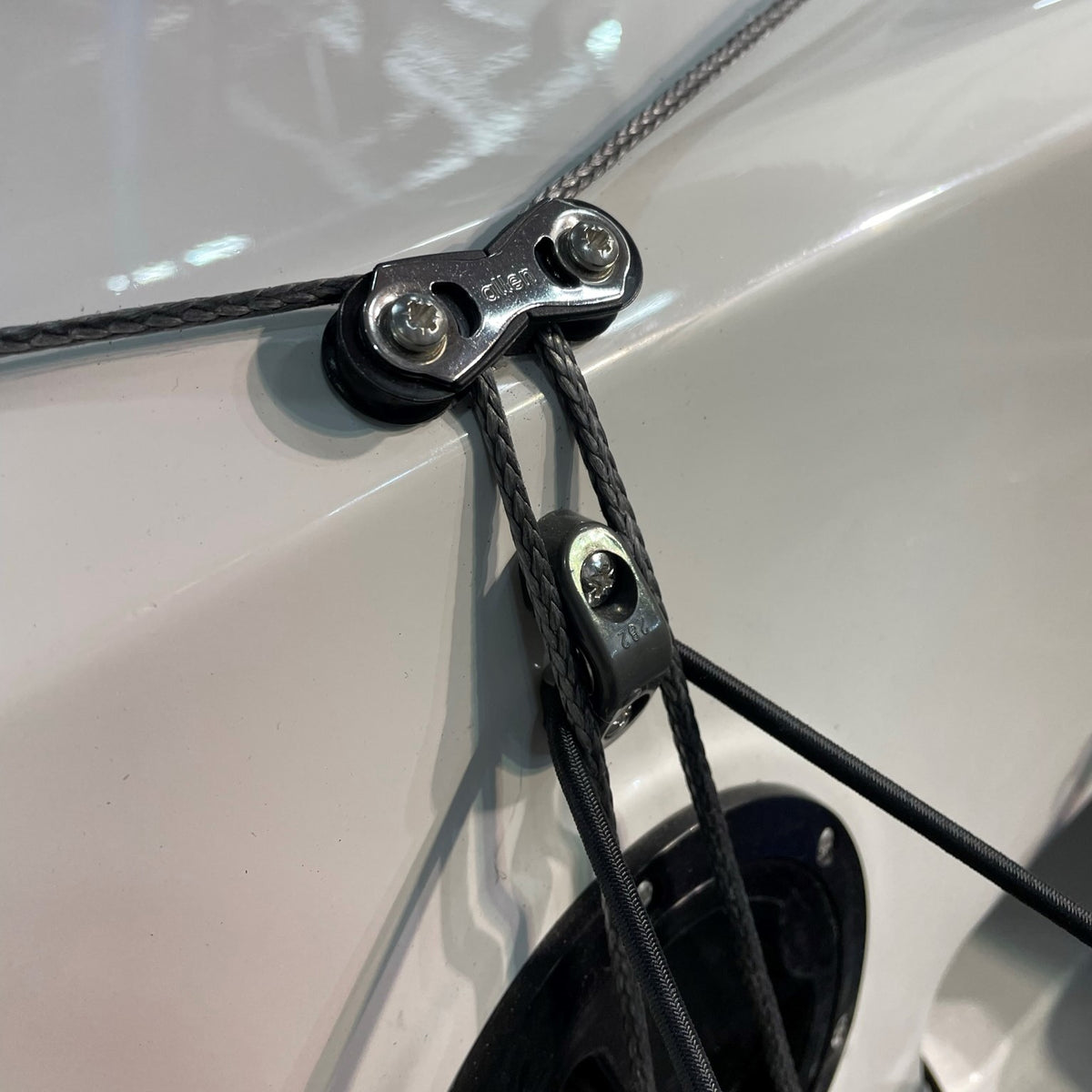

30mm Back To Back Block – Our back to back blocks feature two sheaves, both with our patented dynamic bearing technology.

The sheaves face opposite directions to allow two control lines to run at a maximum of 180 degrees to each other. Held together with a strong stainless steel side strap and nylon mouldings ensures the block will not separate even under two very high opposing loads.

The strength of the design lends itself to be tied around the middle in the slight V shape, meaning it can be used in applications such as triangle backstay systems found on sports boats.

One of the more popular applications is in a dual pole and spinnaker launcher system such as the system commonly found on a 49er.

Bearings – Dynamic Blocks feature our patented bearing system which uses twin rows of stainless-steel ball bearings running on a stainless-steel rail. This provides a superior load-carrying ability and longevity when compared to other bearing systems which run on a plastic rail.

Reviews

There are no reviews yet.

Be the first to review “Back To Back”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Back To Back

SKUxTitlebreaking load kgfixing hole centres mmmaximum line diameter mmmaximum working load kgshackle pin mmLength mmWeight gPrice
A2030Single750-8140-4926[woomc-convert value="17.22"]
A2030FSingle Fork Head With Removable Pin 450-814055631[woomc-convert value="22.78"]
A2030F-873Single Fork Head With Kicker Key 450-814057740[woomc-convert value="30.60"]
A2030HLSingle High Load - Stainless Steel Sheave800-8300-4939[woomc-convert value="40.39"]
A2030HLFSingle Fork Head With High Load Sheave750-830055643[woomc-convert value="45.96"]
A2030HLF-873Single High Load Dynamic Fork Head With SA.873750-830057752[woomc-convert value="53.77"]
A2030LZSingle Stand-Up Fixed500348140-5930.2[woomc-convert value="26.23"]
A2030R2Two Singles On Ring 750-8140-082.5[woomc-convert value="40.26"]
A2030R3Three Singles On Ring750-8140-0108.5[woomc-convert value="60.14"]
A2030SC30mm Block w/Swivel450-8140467.9736[woomc-convert value="43.55"]
A2030SHKSingle With Swivel Hook450-8140-7035[woomc-convert value="42.62"]
A2030Tii-Single Tii-On750-8140-4224[woomc-convert value="17.22"]
A2030TiiHL-Single Tii-On With High Load Sheave 800-8300-4137[woomc-convert value="40.39"]
A2030XHL30mm Extreme High Load Block1250-8500-4341[woomc-convert value="157.33"]
A2031Single Multi Function500-814044728[woomc-convert value="15.59"]
A2031FSingle With Fork450-814045936[woomc-convert value="22.78"]
A2031SCSinge With Swivel Fork400-814046337[woomc-convert value="33.01"]
A2031XHL-873-30mm Extreme High Load Block With SA.8731000-8500-4855[woomc-convert value="165.12"]
A2032Double1250-8280-6372[woomc-convert value="47.44"]
A2032AArticulating Double1250-8280-6361.6[woomc-convert value="50.05"]
A2032HLDouble High Load1250-8450-6387[woomc-convert value="93.76"]
A2032Tii-Double Tii-on Block1100-8280-41.548[woomc-convert value="48.70"]
A2032TiiHLDouble Tii-On Block With High Load Sheave1100-8300-41.560[woomc-convert value="95.02"]
A2033Double With Becket1250-8280-7677[woomc-convert value="49.27"]
A2034Triple1750-8490-63103[woomc-convert value="62.06"]
A2034-676Triple With Inverted Cleat1750-8490-65193[woomc-convert value="122.06"]
A2034AArticulating Triple1750-8490-6382.2[woomc-convert value="64.68"]
A2034HLTriple High Load1750-8650-63132[woomc-convert value="131.56"]
A2035Triple With Becket1750-8420-83114[woomc-convert value="72.56"]
A2035-676Triple With Becket And Inverted Cleat1750-8490-83200[woomc-convert value="132.54"]
A2036Single Cheek Block500-814045935[woomc-convert value="24.95"]
A2036-PROFIXCheek Adaptor For A2031---3.8-06[woomc-convert value="13.40"]
A2036MSingle Composite Cheek400308140-5024[woomc-convert value="17.69"]
A2036MHLSingle Compostie Cheek Block With High Load Sheave400308300-5037[woomc-convert value="33.12"]
A2037Triple With Cleat & Becket1750-8490-83208[woomc-convert value="132.54"]
A2038Back To Back750-8140-7849[woomc-convert value="52.44"]
A2038HLHigh Load Back To Back750-8600-7876[woomc-convert value="98.86"]
A2039Linked Singles750-8140-9452[woomc-convert value="36.48"]
A2039-CAMSingle With Fiddle And Cleat 600-8140489.3186.2[woomc-convert value="112.39"]
A2039-CAM-LDCSingle With Fiddle, Cleat and Hook600-8140-10086[woomc-convert value="100.21"]
A2039FIDDLESingle With Fiddle600-8140489.347[woomc-convert value="89.34"]
A2131Single Through Deck500608140-4725.6[woomc-convert value="34.92"]
A2131HLSingle Through Deck Block With Steel Sheave500608--7425.6[woomc-convert value="58.12"]
A2132Double Through Deck 500908140-7745[woomc-convert value="52.40"]
A2132HLDouble Through Deck Block500908--77-[woomc-convert value="98.75"]
A2134Upstand Block60028.68140-3934.6[woomc-convert value="39.13"]
A2136MDouble Composite Cheek400308280-5036.6[woomc-convert value="38.93"]
A2136MHLDouble Composite Cheek Block With High Load Sheave400308300-5057.6[woomc-convert value="69.78"]
A4101Upstand Block850258140-4557[woomc-convert value="39.13"]
A4111Double Upstand Block85047 x 258140-4546[woomc-convert value="69.46"]
A4978Flip Flop700-8140-6358[woomc-convert value="40.18"]
A9030TiiTAN Block1250-8500-40.6428[woomc-convert value="206.30"]
A9031-873TiiTAN ILCA Vang Block1000-8500568.843[woomc-convert value="213.17"]
