Albacore Fitting List

The Albacore is a 2 person dinghy, which is fast and lively yet relatively easy to learn and sail making it suitable for sailors of any skill level. The Albacore features a fully adjustable rig but is sailed without a spinnaker.

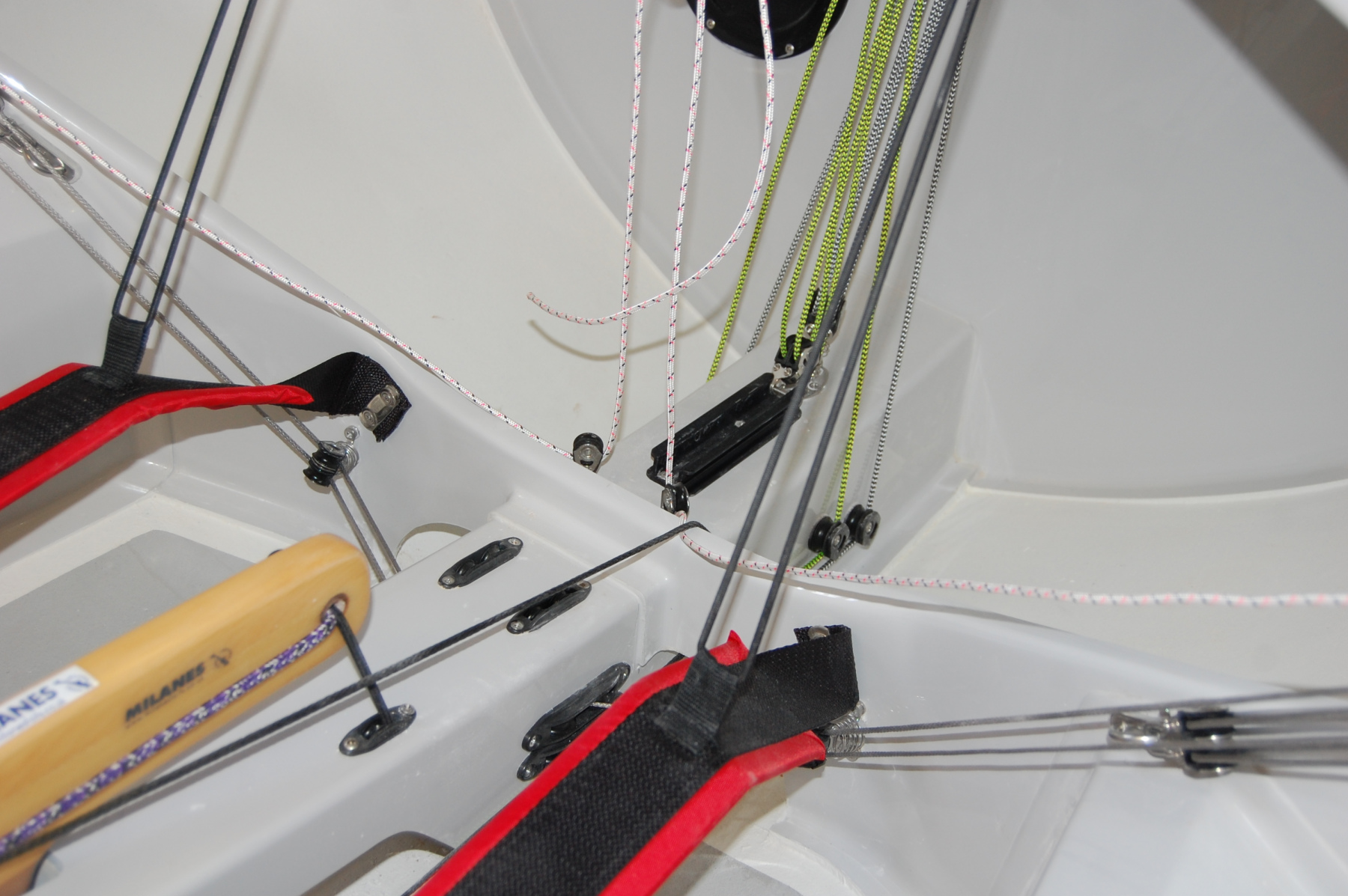

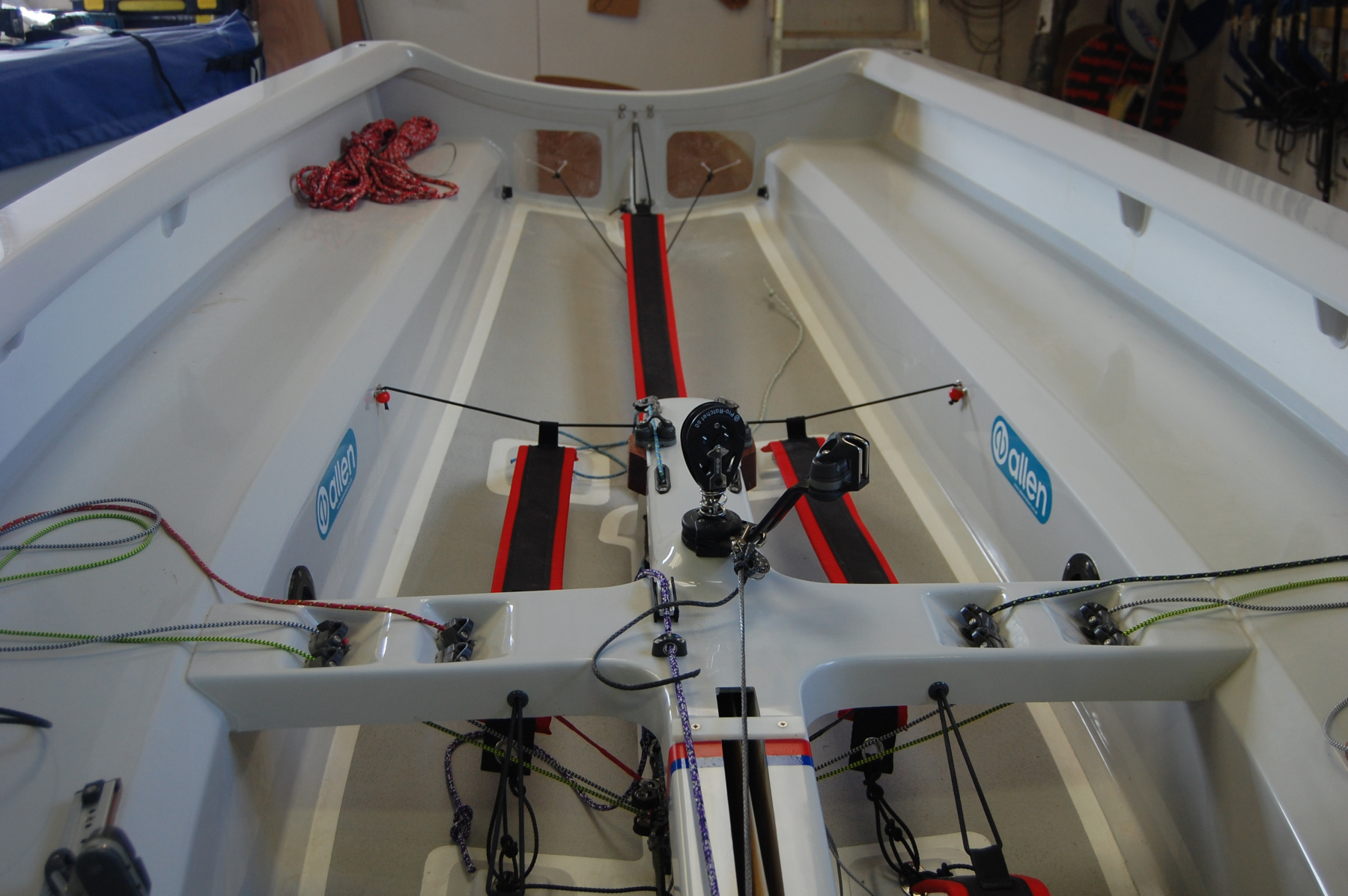

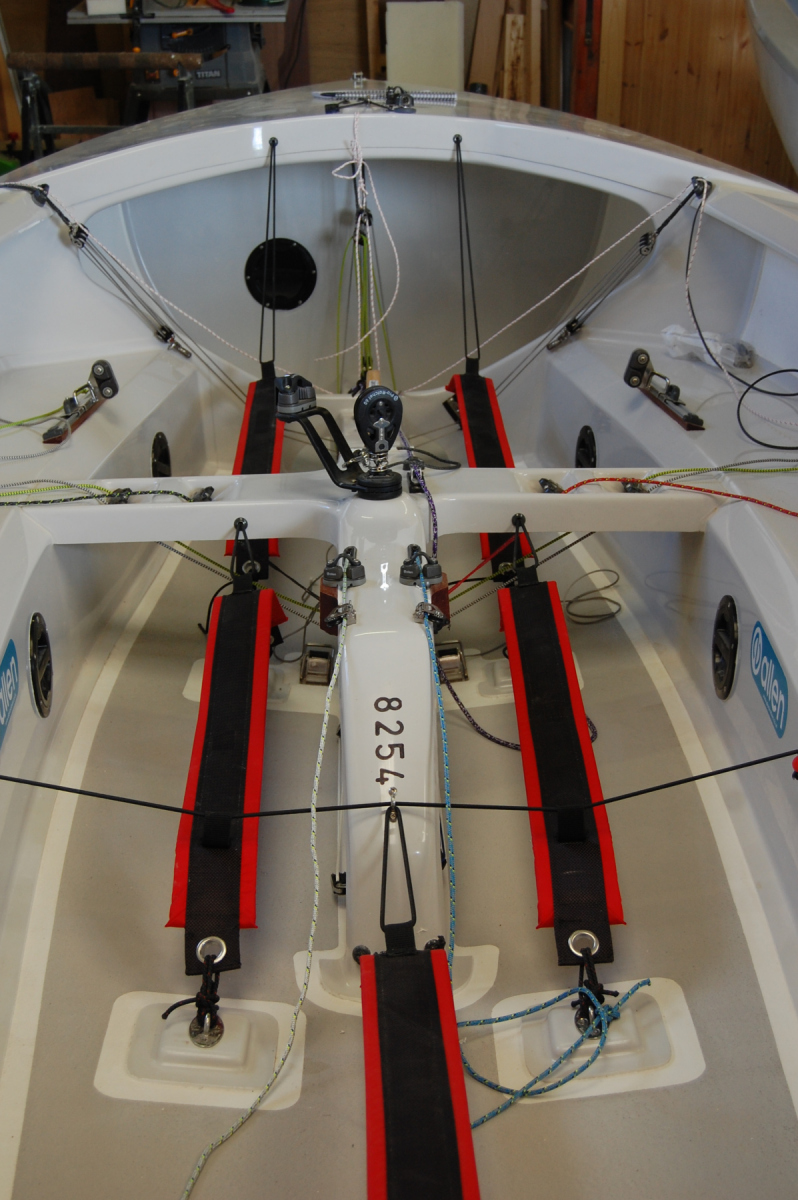

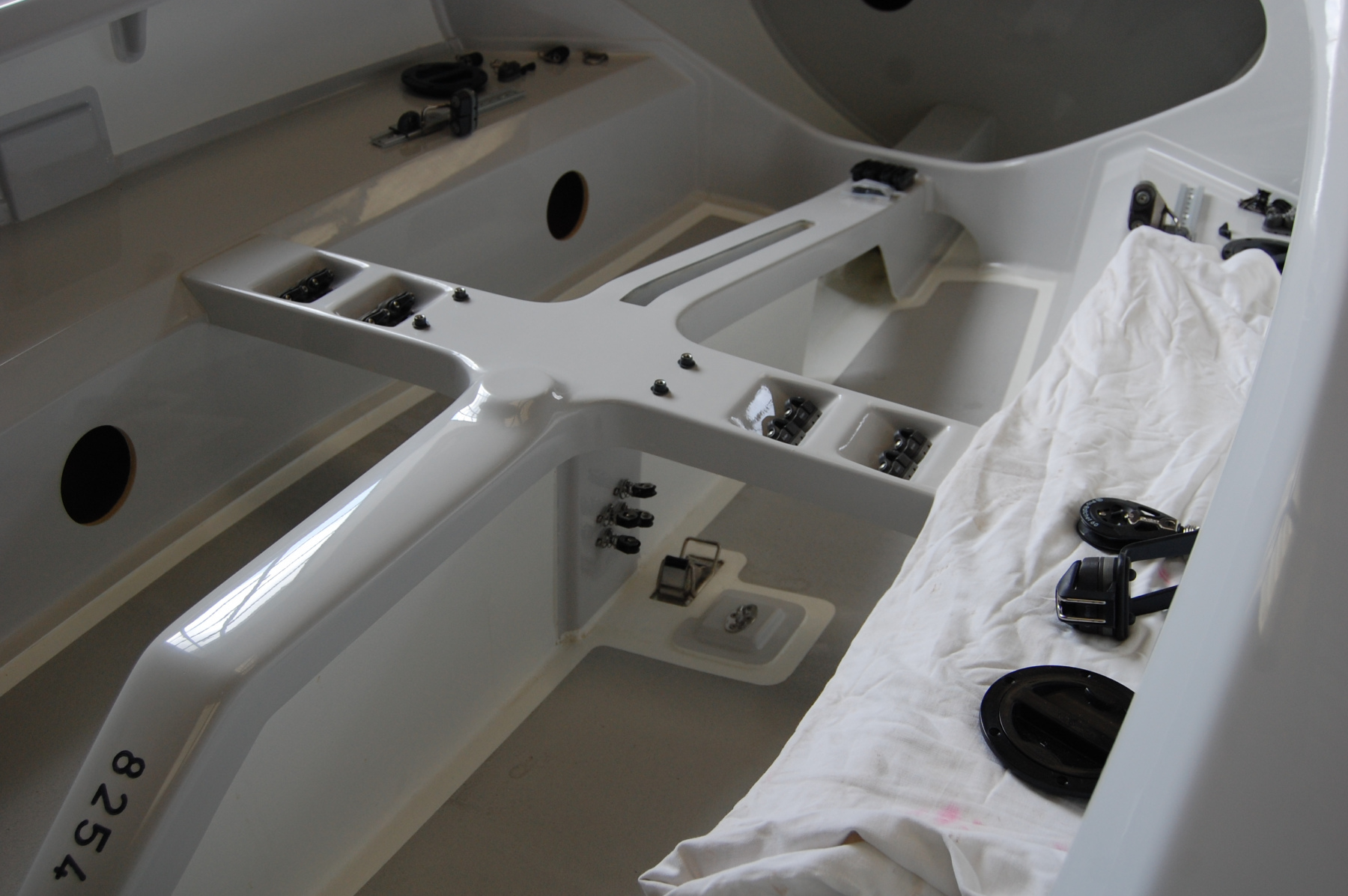

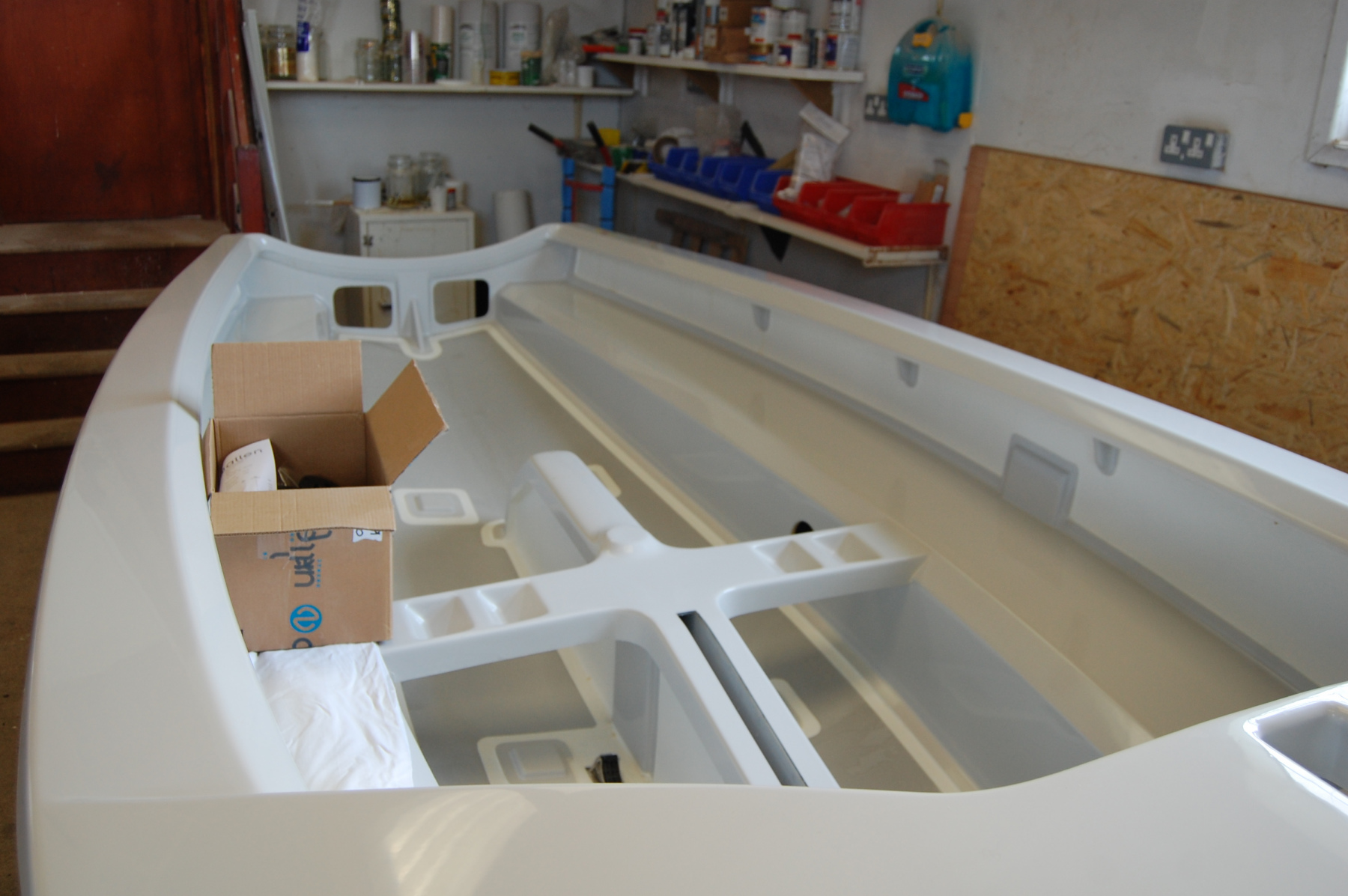

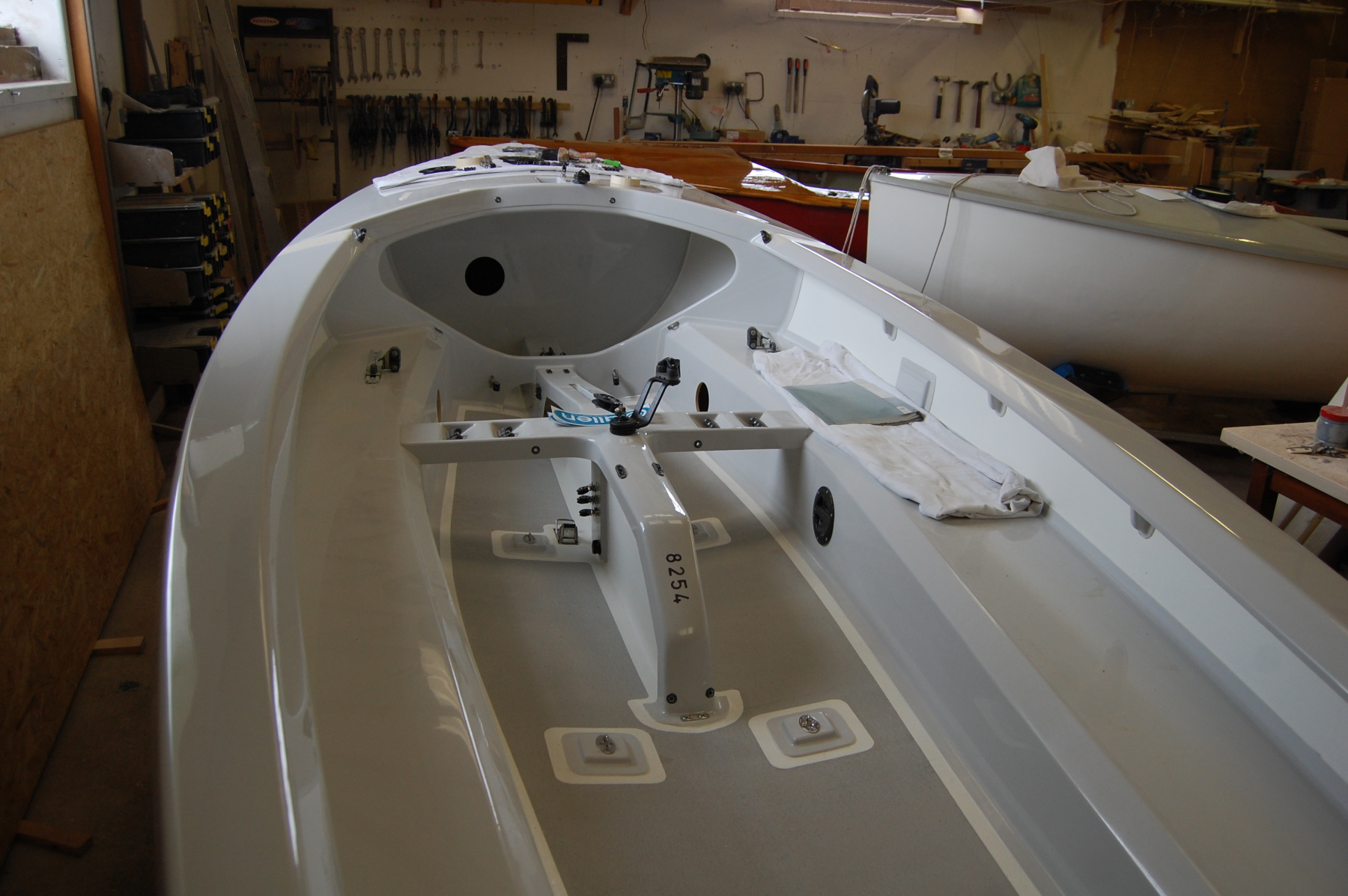

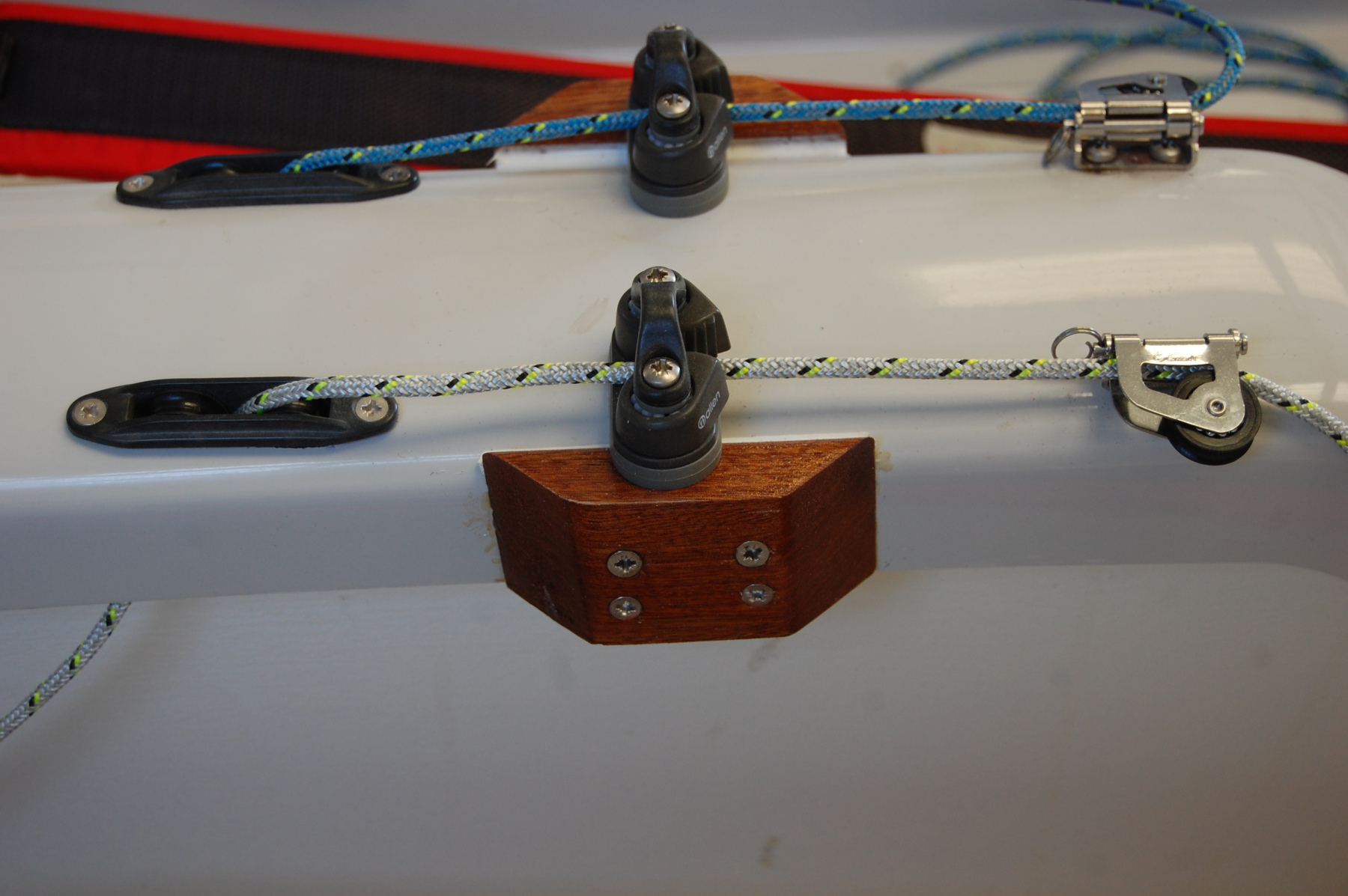

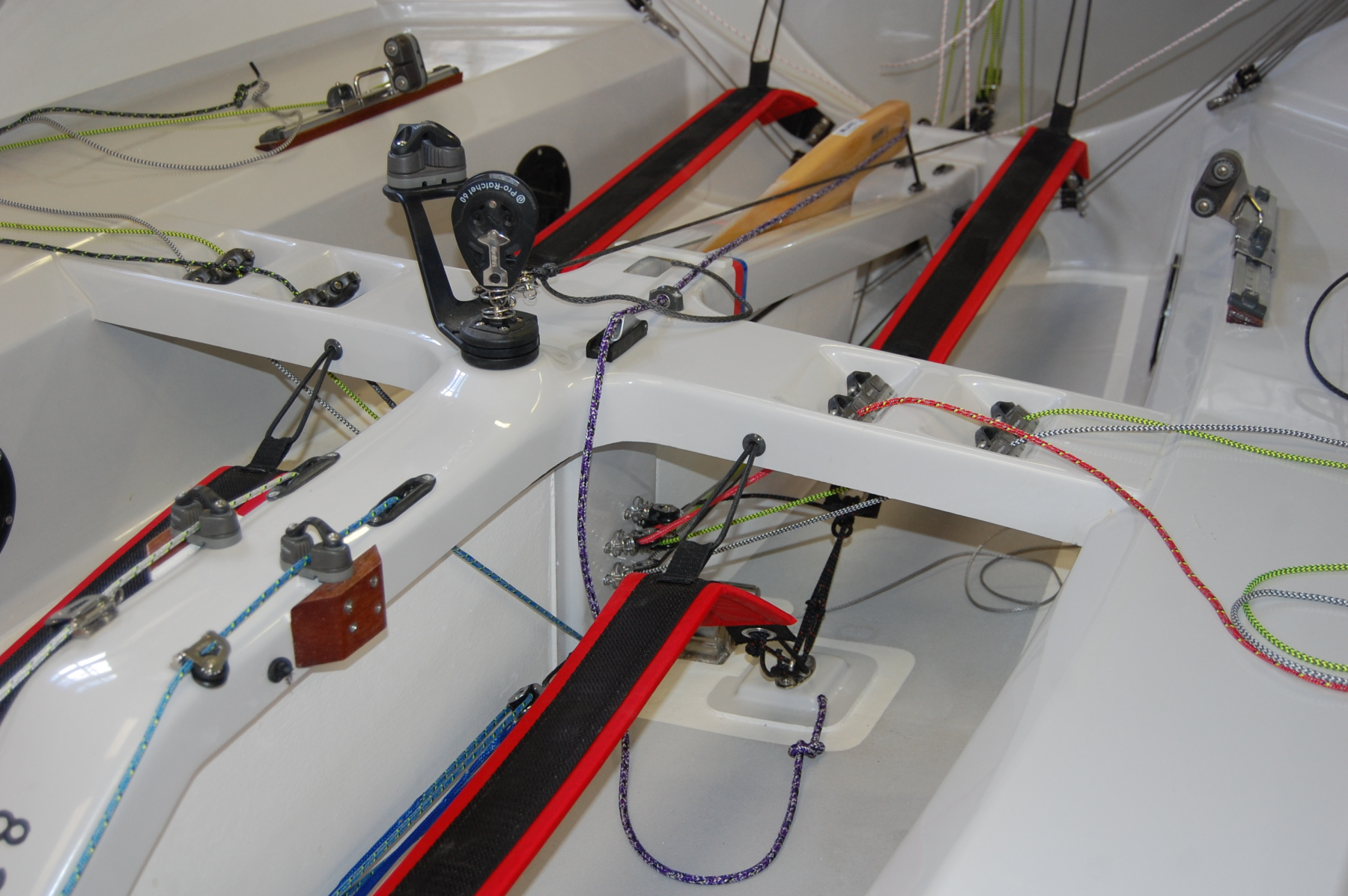

Thanks to Albacore boat builder, Paul Sleeman of CS boats, we have a full fittings list available and images from one of his fit outs to help you choose the correct replacement parts or spec your next boat.

Cunningham

1 x A2020 – 20mm Single Dynamic Block

2 x A2020LZ – 20mm Single Dynamic Stand-Up Fixed Block

2 x A..77 – Small Ball Bearing Cam Cleat

2 x A.488 – Small Cam Cleat Top Fairlead

Kicker

1 x A4279 – Single Flared Cheek Wire Block

2 x A2122 – 20mm Double Dynamic Through Deck

2 x A2020LZ – 20mm Single Dynamic Stand-Up Fixed Block

2 x A..77 – Small Ball Bearing Cam Cleat

2 x A.488 – Small Cam Cleat Top Fairlead

1 x A2030R2 – Two 30mm Dynamic Blocks On Ring

1 x A2030SC – 30mm Dynamic Block With Swivel

2 x A2022 – 20mm Dynamic Double Block

1 x A4439 – Through Deck Bush With Stainless Steel Inner

1 x A2030 – 30mm Dynamic Single Block

1 x A-624105 – 5mm Twisted Shackle With Forged Pin

Mainsheet

1 x A5166ASSEMBLED – Mainsheet Jammer Arm Assembled With Ratchet Block (A2160)

2 x A2040Tii –  40mm Tii-on Dynamic Block

Shrouds and Forestay

2 x A2131HL – Single Through Deck Block With Plain Bearing Steel Sheave

2 x A4371L – U Bolt With Top & Bottom Backing Plate

2 x A2022 – 20mm Dynamic Double Block

2 x A2023 – 20mm Dynamic Double Block With Becket

4 x A2024 – 20mm Dynamic Triple Block

2 x A2020 – 20mm Single Dynamic Block

5 x A2020LZ – 20mm Single Dynamic Stand-Up Fixed Block

4 x A5014 – Small Forged Stainless Steel Eye Strap

3 x A..77 – Small Ball Bearing Cam Cleat

3 x A.488 – Small Cam Cleat Top Fairlead

1 x A2122 – 20mm Double Dynamic Through Deck

4 x A2132 – 30mm Double Dynamic Through Deck

1 x A4001E – Bow Plate

2 x A-621104 – 4mm D Shackle With Forged Pin

2 x A4439 – Through Deck Bush With Stainless Steel Inner

Rig Tension

1 x A4869 – Forged Stainless Steel Hook

1 x A2022 – 20mm Dynamic Double Block

1 x A2024 – 20mm Dynamic Triple Block

1 x A..77 – Small Ball Bearing Cam Cleat

1 x A.488 – Small Cam Cleat Top Fairlead

1 x A-622105 – 5mm D Shackle With Forged Pin

2 x A2036M – 30mm Dynamic Single Composite Cheek Block

1 x A4479 – 25mm Single Wire Block With Shackle

1 x A2122 – 20mm Double Dynamic Through Deck

Fly Away Pole

1 x A2121 – Single Dynamic Through Deck

1 x A4239 – Through Deck Bush With Flange And Stainless Steel Inner

1 x A2030LZ – 30mm Single Dynamic Stand-Up Fixed Block

1 x A2020 – 20mm Single Dynamic Block

4 x A5014 – Small Forged Stainless Steel Eye Strap

Mast Ram

4 x A..77 – Small Ball Bearing Cam Cleat

4 x A.488 – Small Cam Cleat Top Fairlead

4 x A2020LZ – 20mm Single Dynamic Stand-Up Fixed Block

5 x A4439 – Through Deck Bush With Stainless Steel Inner

5 x A2036M – 30mm Dynamic Single Composite Cheek Block

2 x A2022 – 20mm Dynamic Double Block

2 x A2024 – 20mm Dynamic Triple Block

2 x A2121 – Single Dynamic Through Deck

Misc

4 x A1737 – 100mm Integral Seal Rigid Hatch Cover

1 x A1837 – 138mm Integral Seal Rigid Hatch Cover

1 x A7000 – Rudder Stock

1 x A7002-1.0 – 1000mm Tiller For Use With A7000

1 x A4698 – 1067mm Aluminium Tiller Extension

1 x A.323 – Drain Socket With Captive Screw Bung

1 x A.303 – Light Weight Alloy Keelband, Drilled and Anodised.

14 x A4439 – Through Deck Bush With Stainless Steel Inner

1  x A4474-76 – Jib sheet Piston Stop Wire Fairlead Vertical Cam Cleat

2 x A-621104 – 4mm D Shackle With Forged Pin

2 x A-622105 – 5mm D Shackle With Forged Pin

4 x A4673 – Stainless Steel Looped Anchor Plate

3 x A4099 – Toe Strap Plate Stainless Steel

2 x A5015 – Medium Forged Stainless Steel Eye Strap

For any more information about any of the products in this fitting list please contact the Allen sales team – Sales@allenbrothers.co.uk
